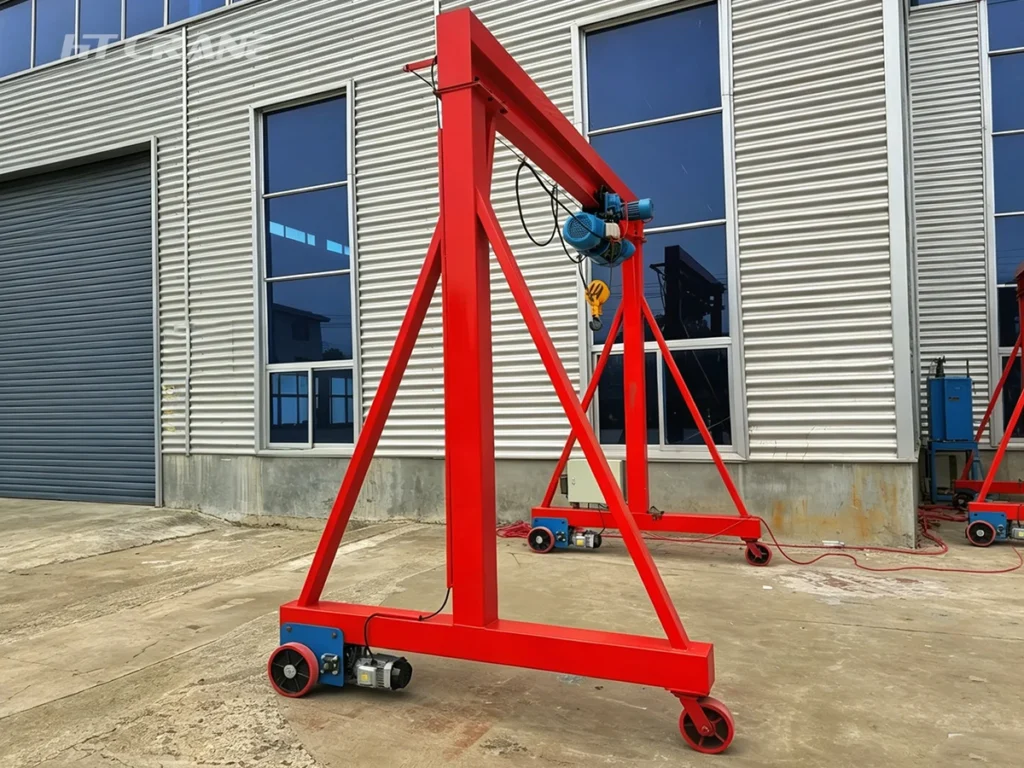

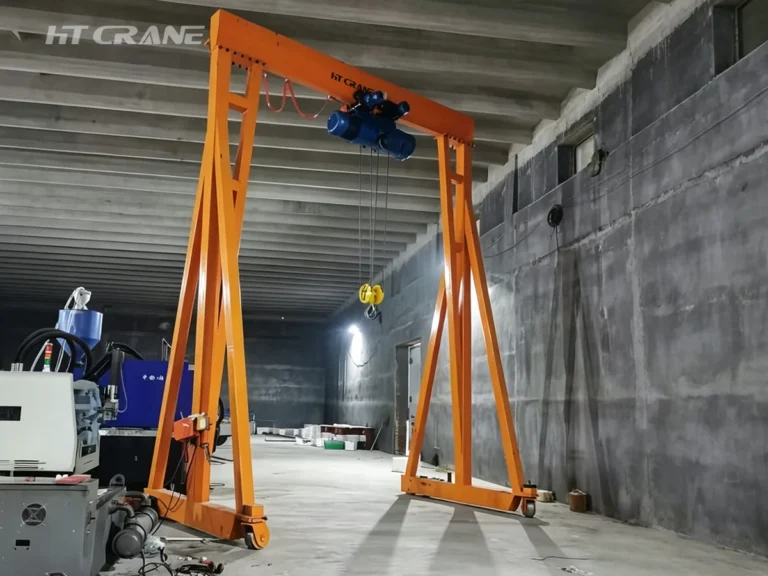

Haitai Crane’s portable gantry crane delivers 1-10 ton full overhead lifting capability without permanent infrastructure. Designed for workshops, maintenance bays, construction sites, and field service operations, the crane assembles without special tools, relocates on caster wheels, and adjusts to match the exact span and height your job requires. From a 1-ton lightweight steel frame to a 10-ton heavy-duty gantry, the range covers the full spectrum of light-to-medium industrial lifting.

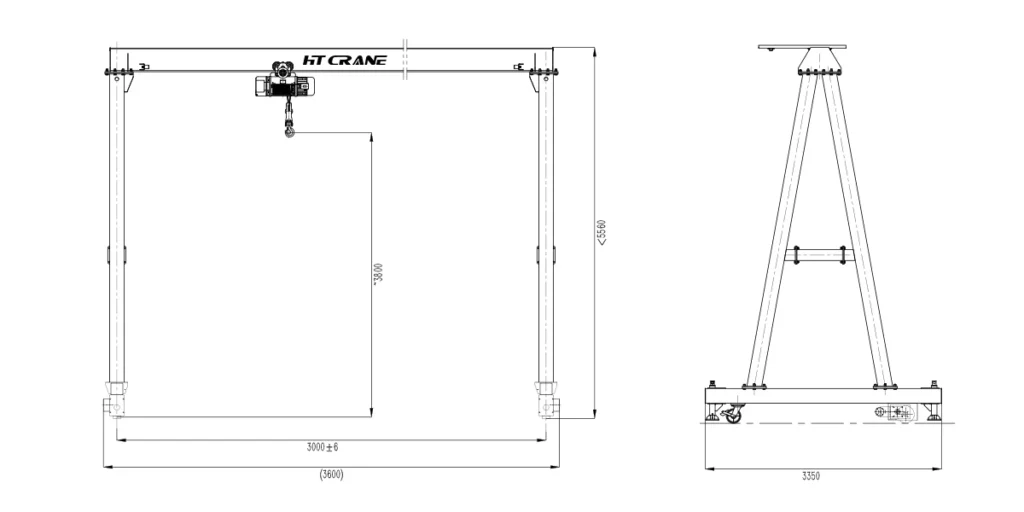

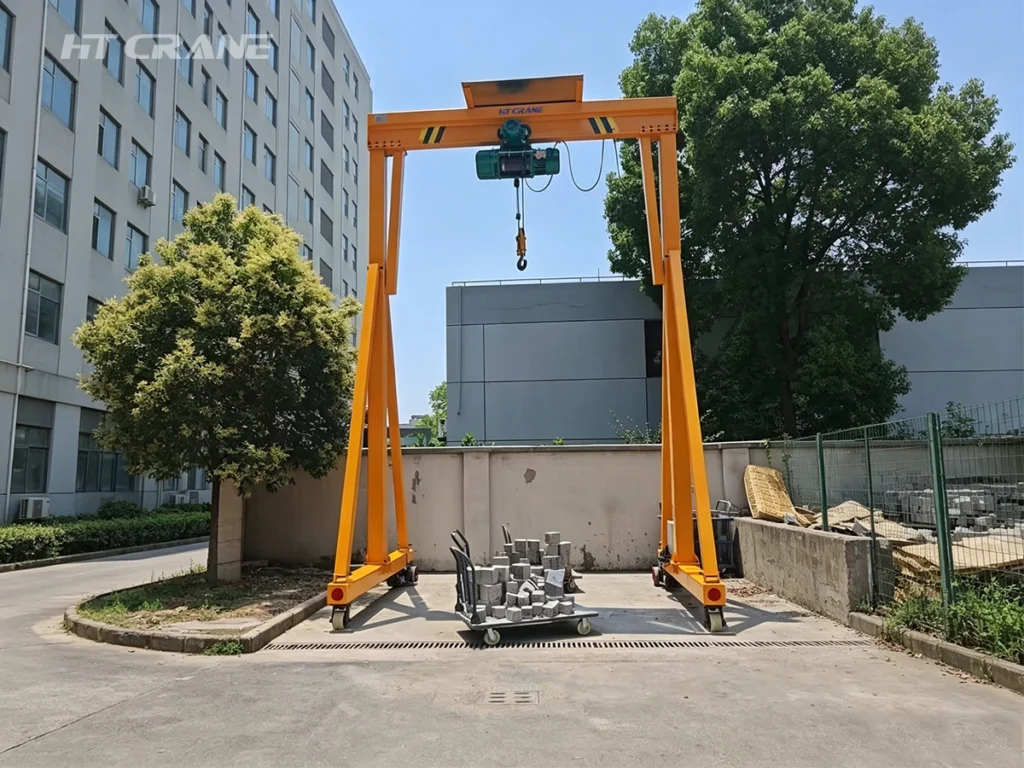

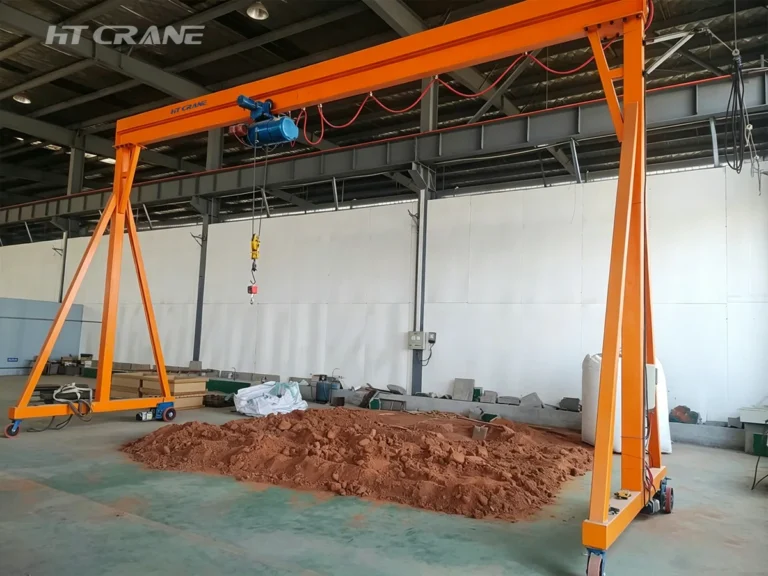

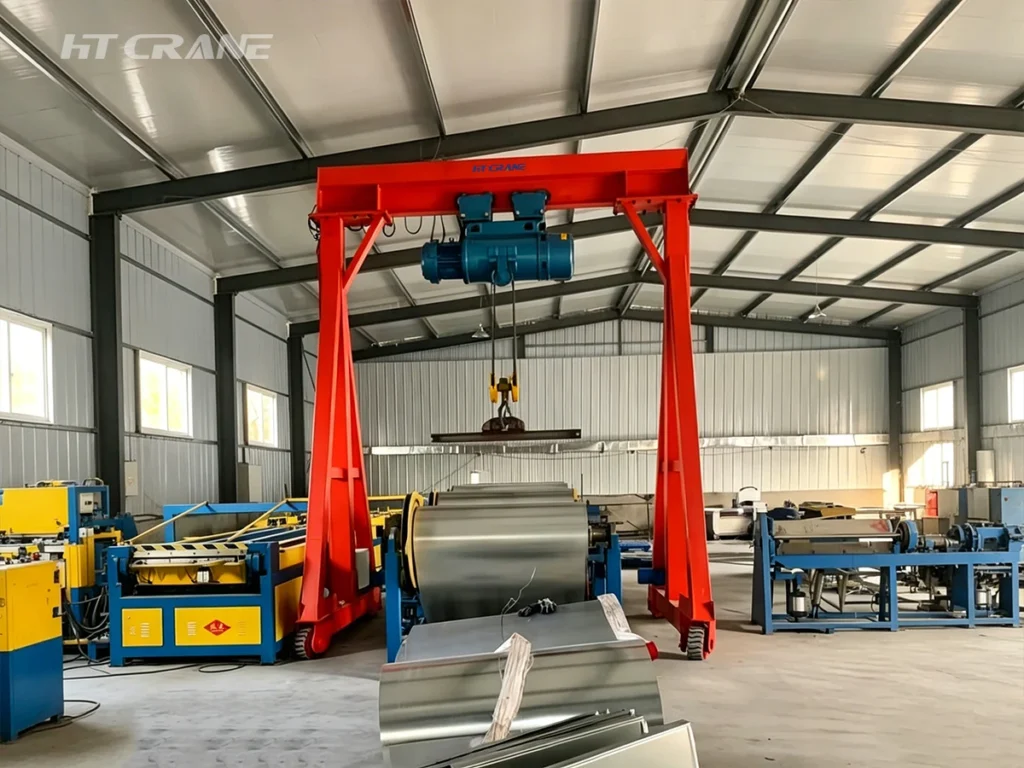

A portable gantry crane is a mobile lifting system built around a steel frame supported by four detachable legs. These four legs can be bolted together without tools, allowing quick assembly, relocation, and disassembly. Therefore, this flexible portable gantry crane is ideal for workshops, warehouses, and temporary job sites where a fixed crane would be impractical.
The overhead bridge runs on rails or rollers, allowing smooth horizontal travel. A hoist (electric hoist, hydraulic hoist, or manual hoist available) raises and lowers loads up to 10 tons with a usable span of 2‑16 m and a lift height of 2‑12 m.
Configurations allow users to adjust leg length, spread, and accessories such as spreader beams or trolleys, making the portable gantry crane ideal for occasional lifts where a fixed crane would be impractical or costly.
Users can choose custom steel‑section sizes, leg configurations, and accessories such as spreader beams or trolley systems to match specific workflow requirements. This flexibility, combined with tool‑free assembly, provides a safe, efficient, and adaptable solution for a wide range of material‑handling tasks.
| Parameter | Detailed Specification | Notes |
|---|---|---|
| Lifting Capacity | 1t / 2t / 3t / 5t / 8t / 10t | Custom capacities available on request |
| Span (between legs) | 2m / 3m / 4m / 5m / 6m / 8m / 10m / 12m / 14m / 16m | Adjustable span models available |
| Lifting Height | 2m / 3m / 4m / 5m / 6m / 8m / 10m / 12m | Height-adjustable models available |
| Frame Material | Structural steel (Q345B) — hot-dip galvanized or powder coat finish | Material selected by capacity and mobility requirement |
| Beam Type | I-beam (standard) or box section (heavy duty) | Box section for 5t+ or longer spans |
| Caster Wheels | Swivel casters with locking brake, 4 per unit | Polyurethane tread; load-rated per crane capacity |
| Hoist Type | Manual chain hoist / electric chain hoist / wire rope hoist | Hoist supplied as package or crane-only |
| Surface Finish | Hot-dip galvanized or powder coat (RAL colour options) | Galvanized finish standard; RAL powder coat available on request |
| Duty Class | A3–A4 (ISO 4301-1:2016) | Standard portable gantry duty profile |
| Compliance | CE Machinery Directive 2006/42/EC; ISO 9001:2015 | Load test certificate supplied |
Note: Non-standard dimensions, capacities, and finishes available — contact Haitai Crane with project requirements. All cranes supplied with load test certificate and CE declaration of conformity.
Use the table below to identify the standard configuration closest to your requirement. All dimensions can be adjusted within the ranges shown; non-standard configurations available on request.
| Rated Capacity | Recommended Frame | Max. Span | Max. Lift Height | Approx. Unit Weight | Typical Application |
|---|---|---|---|---|---|
| 1t | Steel | 8m | 5m | 80–120 kg | Workshop maintenance, small assembly, field service |
| 2t | Steel | 10m | 6m | 120–180 kg | Manufacturing cells, mould handling, equipment installation |
| 3t | Steel | 12m | 8m | 300–420 kg | Fabrication shops, HVAC installation, engine service |
| 5t | Steel | 14m | 10m | 600–850 kg | Industrial maintenance, precast yard, steel fabrication |
| 8t | Steel | 16m | 10m | 900–1,300 kg | Heavy equipment maintenance, shipyard, construction |
| 10t | Steel | 16m | 12m | 1,200–1,700 kg | Production line, outdoor construction, heavy overhaul |
Source: Haitai Crane standard product range, 2026. Unit weights are approximate and vary by span and height selection. Contact Haitai Crane engineering team for exact drawings and load calculations.
Haitai portable gantry cranes have six key features in structure design, customizable parameters, and high working compatibility.
◆ Bolt-Together Frame — No Welding Required
All structural connections use high-tensile bolted joints (Grade 8.8 fasteners). Assembly requires only standard spanners — no welding equipment, no certified welder, no hot-work permit. Typical assembly time: 2 technicians, 1–2 hours depending on span.
◆ Adjustable Span and Height
Telescoping leg and beam sections allow span and height to be set at multiple fixed positions within the rated range. Adjustment is tool-free on adjustable models. Locks positively at each setting with through-bolt and safety pin.
◆ 360° Swivel Casters with Brake
Heavy-duty polyurethane casters allow the crane to be repositioned by hand without load. Individual wheel brakes lock the crane at the working position. Caster load rating matches crane capacity at rated span with standard safety factor.
◆ Lightweight Steel Option for Easy Relocation
Light-section steel frames on 1t–3t models are designed to minimise dead weight without compromising structural integrity. Leg and beam sections are sized for two-person handling and transport in a standard van or pickup bed.
◆ Modular Sections for Transport
All models disassemble into sections that fit standard van or pickup bed. Models up to 3t are sized to fit a standard van or pickup bed when disassembled. All sections are clearly marked for fast reassembly in the field.
◆ Compatible with Standard Hoists
Bottom flange of the main beam is machined to standard I-beam profile (per BS 4 / DIN 1025), accepting any standard manual chain hoist, electric chain hoist, or wire rope hoist with appropriate hook or trolley fitting.
| Factor | Steel Frame | Powder Coat Finish | Recommendation |
| Finish process | Hot-dip galvanized (standard) | Zinc bath immersion; 85–100 μm coating | High capacity (5t+): steel |
| Corrosion protection | Excellent (80–100 year outdoor life; ISO 12944 C3/C4) | Good (30–50 year life; depends on coating thickness) | Corrosive environments: galvanized |
| Appearance | Silver-grey metallic; consistent industrial finish | Full RAL colour range; smooth or textured finish | Appearance-critical installs: powder coat |
| Impact resistance | Galvanized or painted | Good; coating bonds to steel surface — minor chips repairable with zinc-rich paint | Marine / chemical environments: galvanized |
| Best application | Outdoor, marine, construction, long-term site use | Indoor, appearance-sensitive, branding or colour matching | Long span: steel |
| Lead time | Standard; included in normal production lead time | Allow 3–5 additional working days for colour match | High headroom: steel |
| Cost | Standard (included in base price) | Small upcharge for RAL colour; quoted on request | Standard duty: galvanized; RAL colour required: powder coat |
| Recommendation | 20+ years (treated) | 20+ years (inherent resistance) | Indoor / appearance-critical: powder coat RAL |
Haitai Crane supplies the portable gantry crane as a crane-only unit or as a complete lifting package with matched hoist. The following hoist types are compatible and available as factory-fitted options:
| Hoist Type | Capacity Range | Best For | Notes |
|---|---|---|---|
| Manual Chain Hoist | 0.5t – 10t | Infrequent lifts, no power supply | Low cost; operation requires physical effort; zero power dependency |
| Electric Chain Hoist | 0.5t – 10t | Regular use, indoor applications | 110V / 220V / 380V supply; variable speed option available; compact profile |
| Wire Rope Electric Hoist | 1t – 10t | High cycle, longer lift height | Suited to 8m+ lift heights; more robust for sustained duty cycles |
| Pneumatic Chain Hoist | 0.5t – 5t | Hazardous area, paint shop | ATEX-rated options; requires compressed air supply (6–8 bar) |
All hoists supplied with CE marking, load test certificate, and hook latch. Hoist beam trolley is included; push-type (manual) or motorized geared trolley available.
Haitai Crane’s standard portable gantry range covers the large majority of applications. Where standard configurations do not fit your requirement, our engineering team provides custom design within a 5-working-day quotation turnaround.
Every Haitai portable gantry crane is designed, manufactured, and tested to the following standards:
| Standard / Certification | Scope | Applicability |
|---|---|---|
| CE — Machinery Directive 2006/42/EC | Essential Health & Safety Requirements for lifting equipment | All units supplied to EU / EEA markets |
| ISO 4301-1:2016 | Crane classification — duty class A3/A4 for portable gantry | All units |
| EN 13155:2020 | Non-fixed load lifting attachments — safety requirements | Spreader bars and lifting beams supplied as accessories |
| ISO 9001:2015 | Haitai Crane quality management system certification | All manufactured products |
| ASME B30.2 (on request) | Overhead and gantry cranes — US market standard | Available for projects requiring ASME compliance |
| Load Test Certificate | SWL proof load test at 125% rated capacity | Supplied with every unit as standard |
All portable gantry cranes are proof load tested at 125% of Safe Working Load before dispatch. Load test certificate, CE Declaration of Conformity, and assembly/operation manual are supplied as standard. Inspection and re-certification service available annually.
Typical assembly time: 2 persons, 1–2 hours (dependent on span and height). Full illustrated assembly manual supplied with every crane.
Portable gantry cranes require minimal maintenance under normal use. Recommended intervals:
To request a quotation, please provide the following:
Standard lead time: 2–4 weeks for standard configurations. Custom designs: 4–6 weeks from drawing approval.
Volume orders and framework agreements available, contact Haitai Crane’s export sales team for pricing now.
Contact our engineering team with your span, load, hook height, and building structure details. We will provide a complete technical proposal and the structural load documentation your building engineer needs for the assessment.

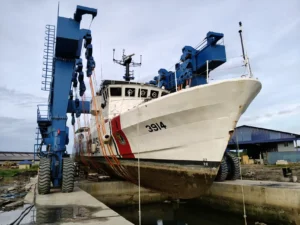

If you manage a marina, boatyard, or naval facility, you already know the pain: vessels stuck in the water waiting for maintenance, slipways that damage hulls, and cranes that simply weren’t built for boats. A marine travel lift solves all three problems in a single machine. It lifts, moves, and launches vessels safely — without fixed rails, without hull damage, and without slowing down your yard. This page covers everything you need to evaluate a marine travel lift: what it does, where it works, what makes ours different, and the full technical specs. If you are ready to specify a unit, our engineering team responds to enquiries within 24 hours. Product Description A marine travel lift — also called a boat travel lift, mobile boat hoist, or self-propelled boat hoist — is a rubber-tyred gantry crane designed specifically for vessel handling. The portal frame straddles the boat in the water. Polyester slings are positioned under the hull. The vessel is then lifted clear and driven anywhere on land. No rail tracks. No fixed infrastructure. Just one machine that handles haul-out,…

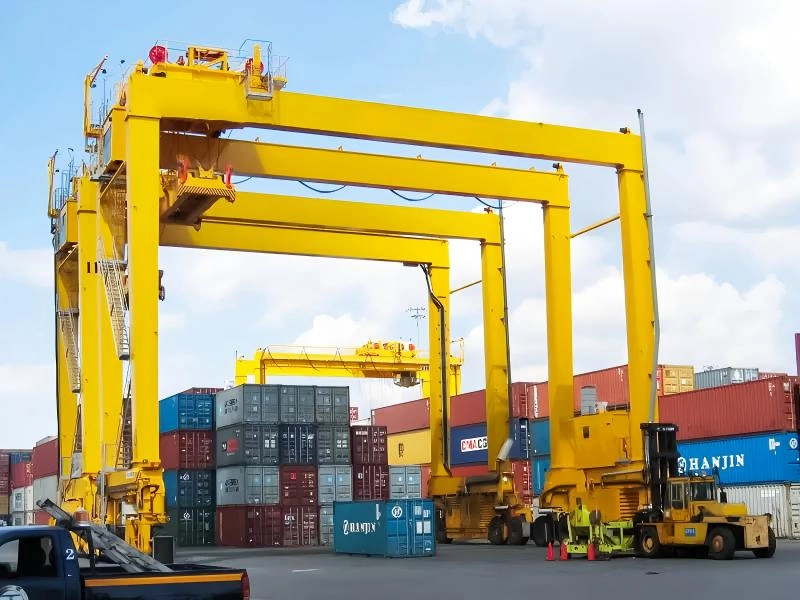

Choosing the right RTG crane supplier impacts your entire port or yard operation. A wrong choice means delays, downtime, and costly repairs. We help you avoid that. As a certified RTG crane manufacturer and exporter, we supply high-performance rubber tyred gantry cranes built for container terminals, intermodal yards, and logistics hubs worldwide. Product Description An RTG crane (Rubber Tyred Gantry Crane) is a mobile overhead crane designed to stack and move ISO containers in port container yards and inland depots. Unlike rail-mounted cranes(RMG Container Gantry Crane), RTG cranes run on rubber tyres — giving them full mobility across the yard without fixed infrastructure. 👉View Professional Buying Guide: RTG Crane vs RMG Crane: Which One Actually Fits Your Project? RTG cranes are the backbone of modern container terminal operations. They bridge the gap between ship-to-shore cranes and horizontal transport, enabling efficient container stacking, retrieval, and yard organization. Why Buy From Us? HT Cranes is a professional manufacturer of RTG cranes with over 15 years of lifting experience. Our cranes are exported to ports and logistics yards across Southeast Asia, the Middle…

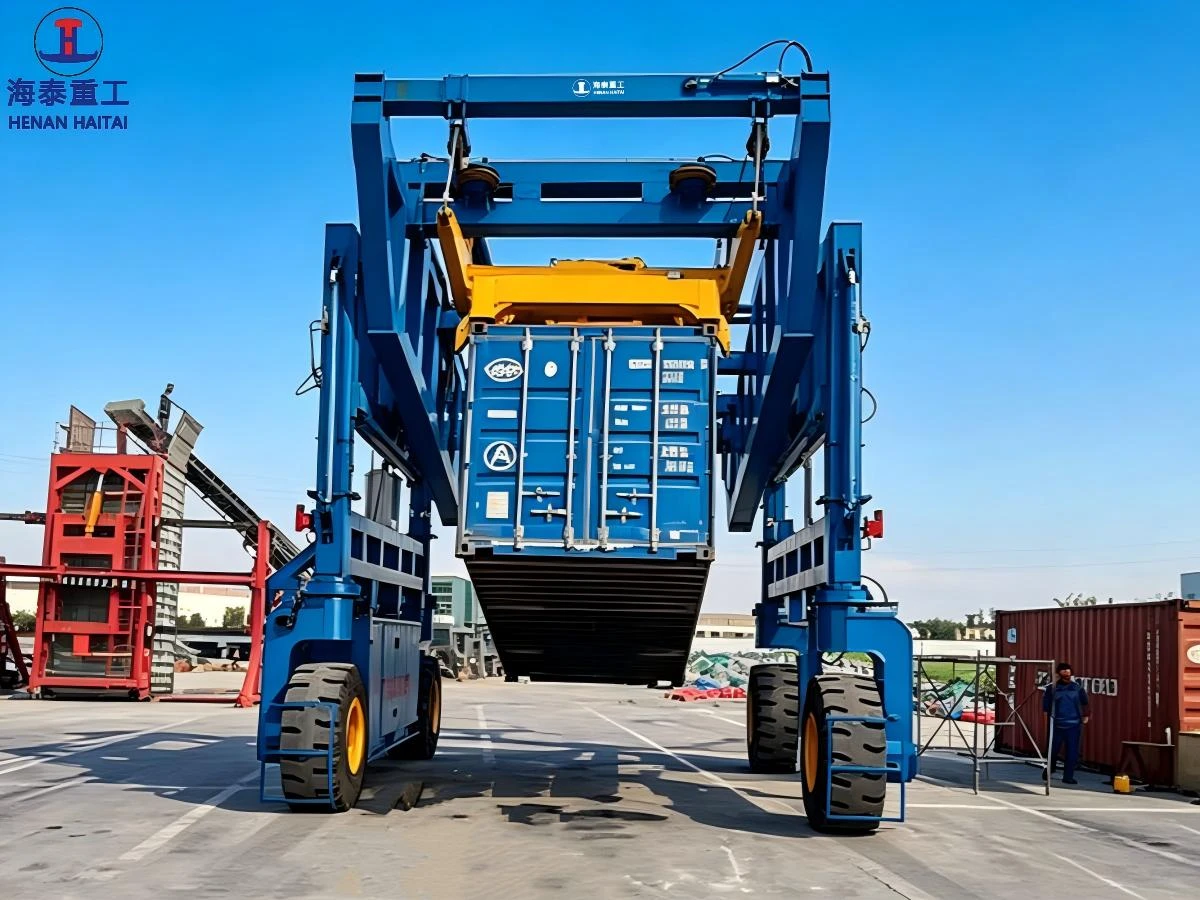

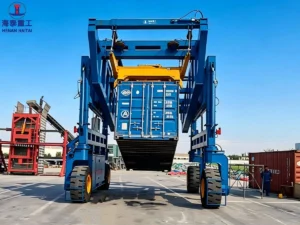

If you handle heavy containers, steel structures, or oversized industrial cargo — and your site lacks fixed power infrastructure — a hydraulic straddle carrier is likely the most practical solution available. It lifts, travels, and places loads without needing overhead structures, rails, or high-voltage power supply. One machine. Full mobility. Minimal civil works. What Is a Hydraulic Straddle Carrier? The Core Concept A hydraulic straddle carrier is a self-propelled heavy lift vehicle. It straddles a load — lifting from below using a hydraulic spreader or lifting beam — and moves freely across the yard on rubber tyres. The entire lift-and-travel cycle is powered by an onboard diesel-hydraulic system. Unlike electric or cable-reel powered cranes, the hydraulic straddle carrier carries its own power source. This makes it fully independent of yard infrastructure. You can deploy it anywhere your surface can support the wheel loads — no fixed installation required. How the Hydraulic System Works The engine drives hydraulic pumps that supply pressurized fluid to the lift cylinders, drive motors, and steering actuators. All motion — lifting, lowering, travelling, and steering —…
